Pack-out Calculation for Your Drinks or Food Load in PROCOOL Fridges

We Provide FREE Pack-out for You to Figure out
How Many of Your Products will Fit inside Our Fridge

We Provide FREE Pack-out for You t Figure outo
How Many of Your Products will Fit inside Our Fridge

Pack-out for Current Models

The pack-out is a simple schematic diagram to show you how many of your products (drinks or food in any packaged form) would fit inside our refrigerators. This will give you a better feeling of how your drinks or food will be stacked and merchandised with our advertising fridges. Below is the pack-out data of our current refrigerator models. If you want to know how many of your products will fit inside, just send us your product dimension. We will figure out the exact quantity with a pack-out for you.

FREE Pack-out Calculation

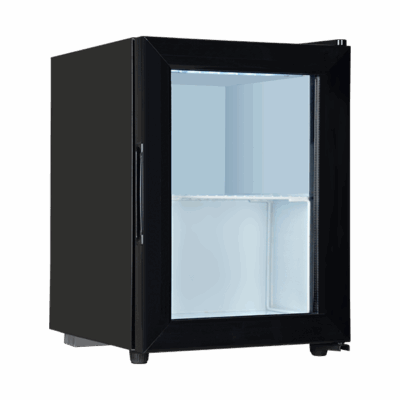

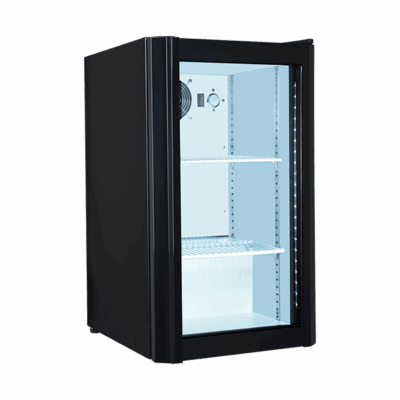

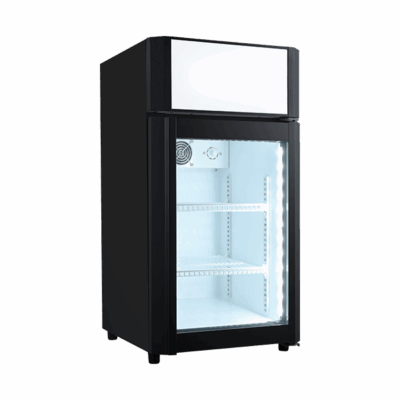

Mini Cooler

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
T-12	4	4	12	12	12	14
T-15	7	7	9	13	16	30
T-25	16	16	24	28	28	40
T-50	15	15	20	40	45	60
T-80	40	40	55	90	90	120
T-50L	45	45	48	48	56	75
T-80L	45	45	70	100	84	120

Can Cooler

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
CC-40A	21	21	42	63	56	69
CC-50A	46	46	63	84	84	96
CC-65A	46	46	63	105	108	138
CC-77A	46	69	84	126	116	160
CC-40B	21	21	42	63	56	69
CC-50B	46	46	63	84	84	96
CC-65B	46	46	63	105	108	138
CC-77B	46	69	84	126	116	160
CC-85B	82	82	111	140	114	168
OT-90
OT-110	62	62	112	222	168	360

Glass Cooler

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
G-45	20	20	40	40	60	60
G-65	40	40	120	60	90	90
G-120	42	42	72	108	98	168

Product

Model

500 ml / 16.9 oz PET
φ62.6×249.1 mm

330 ml / 11.2 oz PET
φ63×230 mm

500 ml / 16.9 oz Can
φ66.3×160 mm

330 ml / 11.2 oz Can
φ66×116 mm

330 ml / 11.2 oz Slim Can
φ57.5×146 mm

250 ml / 8.5 oz Can
φ53×135 mm

G-45

G-65

120

G-120

108

168

Upright Cooler - Slim

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
CSL-120B	60	60	64	80	125	150
CSL-160	80	80	120	180	150	240
CSL-260	120	150	180	300	252	336
CSL-160B	80	80	120	200	150	270
CSL-260B	120	150	180	300	252	378
CSL-280	135	135	195	330	270	360
CSL-280B

Upright Cooler - Single Door

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
A-11	168	168	210	394	336	432
A-12	157	154	196	364	368	477
CS-200
CS-250
CS-300
CS-360	168	210	252	420	392	576
CS-400
CS-420
CS-450
CS-550				560		792
CS-660
CS-200B
CS-250B
CS-300B
CS-360B	168	210	252	420	392	576
CS-400B
CS-420B
CS-450B
CS-550B
CS-660B
CS-410	189	231	315	420	424	648
CS-410B	189	231	315	420	424	648

Upright Cooler - Double Door

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
CSD-590	324	324	429	960	689	1140
CSD-600
CSD-700
CSD-800
CSD-1000	512	640	840	1120	1071	1440
CSD-1200
CSD-1400
CSD-600S
CSD-800S
CSD-1000S	512	640	840	840	1071	1152
CSD-1200S	440	550	630	840	833	1152
CSD-1400S

Upright Cooler - Multi Door

Product	Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
	CST-1600	855	855	966	1440	1323	1856
CST-2000
	CST-1600S	855	855	966	1440	1323	1856

Product

Model

500 ml / 16.9 oz PET
φ62.6×249.1 mm

330 ml / 11.2 oz PET
φ63×230 mm

500 ml / 16.9 oz Can
φ66.3×160 mm

330 ml / 11.2 oz Can
φ66×116 mm

330 ml / 11.2 oz Slim Can
φ57.5×146 mm

250 ml / 8.5 oz Can
φ53×135 mm

3 Door Beverage Cooler with Hinged Doors_Front

CST-1600

855

966

1440

1323

1856

CST-2000

CST-1600S

855

966

1440

1323

1856

Back Bar Cooler

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
BB-1N
BB-1	64	104	126	182	144	193
BB-2	96	156	216	312	260	336
BB-2S	96	156	216	312	260	336
BB-3	152	247	324	468	400	504
BB-3S	152	247	324	468	400	504
BS-1	64	104	126	182	144	193
BS-2	96	156	216	312	260	336
BS-3	152	247	324	468	400	504
BB-1 Black Solid	64	104	126	182	144	193
BB-2 Black Solid	96	156	216	312	260	336
BB-3 Black Solid	152	247	324	468	400	504
BB-1 SS Solid	64	104	126	182	144	193
BB-2 SS Solid	96	156	216	312	260	336
BB-3 SS Solid	152	247	324	468	400	504
BBS-1
BBS-2

Wine Cooler

Model	Type	750 ml / 25.4 oz Bordeaux Bottle φ76.5×300.5 mm
W-60	Single Zone	19
W-90	Single Zone	31
W-90	Dual Zone	28
W-150	Single Zone	52
W-150	Dual Zone	46
W-270	Single Zone	110
W-270	Dual Zone	99
W-380	Single Zone	154
W-380	Dual Zone	143
W-430	Single Zone	176
W-430	Dual Zone	165
WB-120	Dual Zone	19 (+ 56 Beverage Cans)

Subzero Cooler

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
SZ-50L	45	45	48	48	56	75
SZ-80L	45	45	70	100	84	120
SZ-360	168	210	252	420	392	576
SZ-420

Open Cooler

Model	500 ml / 16.9 oz PET φ62.6×249.1 mm	330 ml / 11.2 oz PET φ63×230 mm	500 ml / 16.9 oz Can φ66.3×160 mm	330 ml / 11.2 oz Can φ66×116 mm	330 ml / 11.2 oz Slim Can φ57.5×146 mm	250 ml / 8.5 oz Can φ53×135 mm
OT-120	63	63	126	189	240	297
OF-200	88	88	120	208	144	310
OF-250
OF-300
OF-350	225	225	234	234	310	352
OF-500	312	312	336	336	429	570
OF-700	442	416	512	448	594	760
OF-450	289	272	336	336	468	520
